Page meta data in Sphinx

In bigger Sphinx projects, written by hundreds of authors, you often need to store additional data to keep the creation and update of pages under control.

This data can be stored and maintained as metadata at the top of each rst file.

The main questions about a page are often:

• Who is responsible?
• Who made the last change?
• When was the last change?
• What is the content or goal of the page (short excerpt)?
• What is the status? Still a draft?
• Is there any critical content? Internal use only?

You can answer these questions on the page itself, as part of the normal content. But that usually doesn’t look nice, and the information can’t be reused.

A better approach is Sphinx-Needs, which lets you place a need object at the beginning of each page. This object is highly configurable and can be shown in filterable tables.

So what are our goals?

1. An object that represents the current page.
2. The object stores the author, the date of the last change, and tags.
3. The object has the same title as the current page.
4. It’s possible to write a short excerpt.
5. The reader can show or hide the details.

In an rst file, the final result could look like this:

Page Meta Data in Sphinx
========================

.. metadata::
   :id: META_DATA
   :author: Mr. Nice Guy
   :tags: sphinx, sphinx-needs, meta, collapse, content, style
   :last_changed: 21.12.2020

   Chapter to explain the usage of ``metadata`` on headline/chapter level.

.. and more ..

And in the documentation it is shown like this:

Sphinx-Needs already provides the fields id and tags. It also handles title and content for us.

The need type metadata is new, so we have to configure it in conf.py, together with the additional fields.

By default, Sphinx-Needs forces the user to set a title for a need. We need to deactivate that as well.

# conf.py

# Allows needs without a title, as it will be set automatically
needs_title_optional = True

# Meta need type
needs_types = [dict(directive="metadata", title="Meta data", prefix="M_", color="#BFD8D2", style="node"),
               # Other need types
              ]

# author and last_changed option
needs_extra_options = ['author', 'last_changed']

Now we can create the metadata need and build the docs without any warning.

What’s missing is the title, which should be copied from the page. For this we use the Sphinx-Needs features dynamic functions and global options.

The copy function takes the value of the already collected section_name and uses it for title:

.. metadata:: {{copy("section_name")}}

As we don’t want to write this copy line on every metadata need by hand, we configure a global option:

needs_global_options = {
   'title': ('{{copy("section_name")}}', 'type == "metadata" and title is False')
}

This sets the title only for needs of type metadata, and only if no title is set. So authors can still set a specific title by hand.

This is what a metadata need looks like now:

.. metadata::
   :id: META_DATA
   :author: danwos
   :tags: sphinx, sphinx-needs, meta
   :last_changed: 18.11.2021

   Explains how to set meta data for a Sphinx page.

Result:

The data looks good already. But the layout isn’t nice, and we want to hide it from the reader.

Both problems can be solved with a custom Sphinx-Needs layout, which hides all unnecessary options and gives us full control over the content.

# conf.py
needs_layouts = {
    'meta': {
        'grid': 'content_footer',
        'layout': {
            'footer': [
                '<<collapse_button("content", '
                'collapsed="Hide metadata", visible="Show metadata", initial=False)>> ']
        }
    }
}

The grid content_footer has only two areas: content and a footer. There is no area for a title or option values.

We use the content area to show only the data we need. The footer shows or hides the content.

All we need to do is set meta as layout for every metadata need:

needs_global_options = {
   'title': ('{{copy("section_name")}}', 'type == "metadata" and title is False'),
   'layout': ('meta', 'type == "metadata"')  # This line is new
}

Result:

The collapse feature works when you click “Show metadata”. But the content area only shows the content of the need. We need more information there.

So we use the Sphinx-Needs template feature to define the content.

Create a folder needs_templates in the root folder of your Sphinx project and add a file metadata_template.need:

:Title: {{title}}
:Author: {{author}}
:Tags: {{tags|join(", ")}}
:Last changed: {{last_changed}}

{{content}}

And again, a global option activates it for all metadata needs:

needs_global_options = {
   'title': ('{{copy("section_name")}}', 'type == "metadata" and title is False'),
   'layout': ('meta', 'type == "metadata"'),
   'template': ('metadata_template', 'type == "metadata"')  # This line is new
}

Result:

Nice – the metadata need now shows only the required data.

One last step: make the metadata less prominent, so it doesn’t disturb the reader. For this we use the style clean:

needs_global_options = {
   'title': ('{{copy("section_name")}}', 'type == "metadata" and title is False'),
   'layout': ('meta', 'type == "metadata"'),
   'template': ('metadata_template', 'type == "metadata"'),
   'style': ('clean', 'type == "metadata"')  # This line is new
}

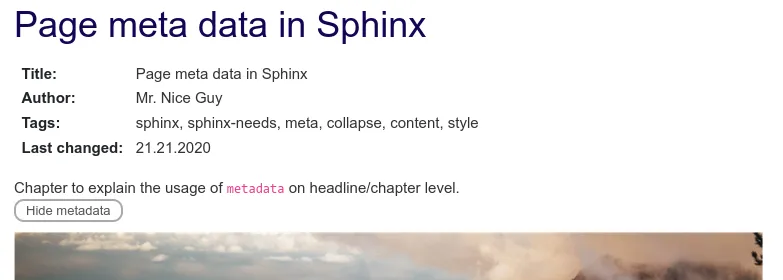

Result:

That’s it: a discreet metadata need that shows only the required data.

With a bit of CSS, “Show metadata” becomes a small button:

# conf.py
html_css_files = [
    'custom.css'
]

/* _static/custom.css */
table.needs_layout_meta span.collapse span {
    color: #555;
    border: 2px solid #aaa;
    border-radius: 10px;
    padding: 2px 10px;
}

Result:

Headlines

Another nice thing: you can also use the metadata need for further headlines on the same page, because the title is always taken from the last headline. So you can set different authors and other data within a single file.

Outlook

Right now, nearly all the data must be set by hand, for example the author. But Sphinx and Sphinx-Needs follow the docs-as-code approach, so the documentation usually lives in a version control system like Git.

And Git already knows a lot: the last commit on this file, the last author, the date of the last change.

So the next step for this metadata concept would be to take this information from Git automatically. But that’s a topic for another post.
